Description
SPECIFICATION TABLE

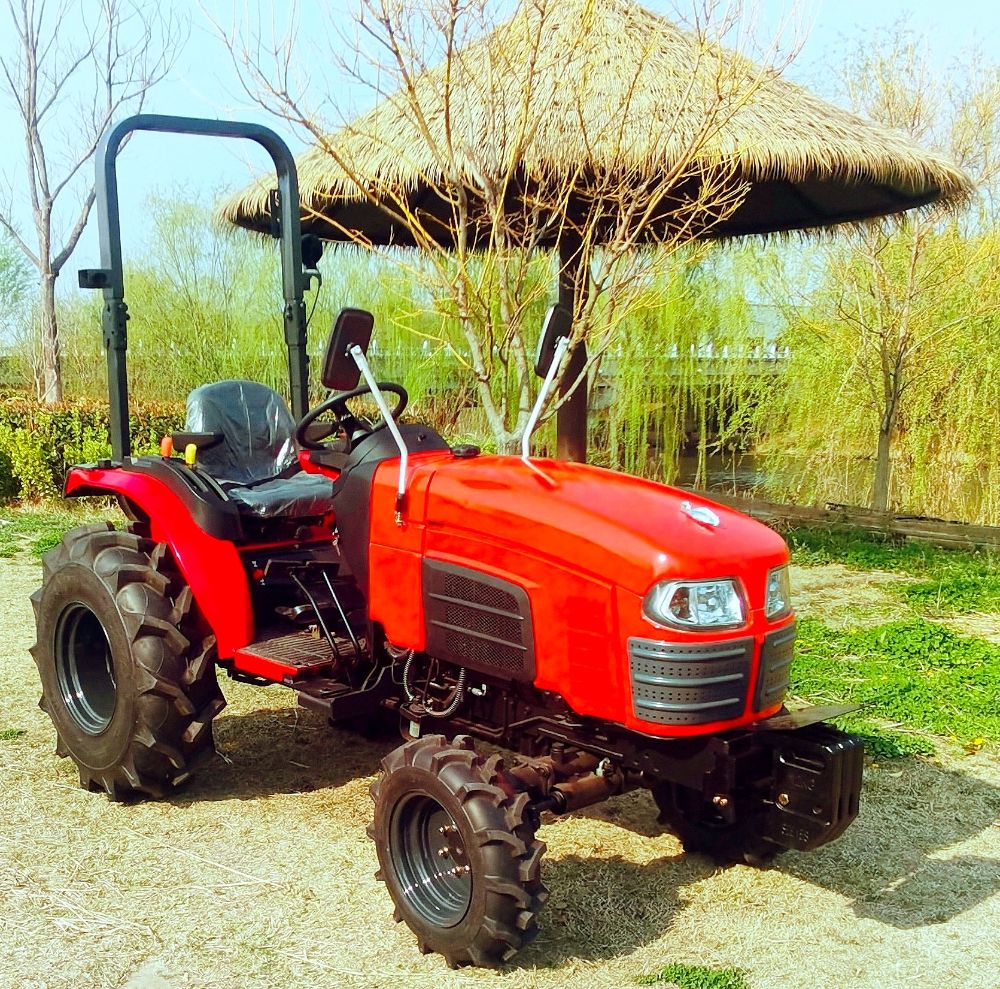

| Model | B4030HST | ||
| PTO power | kW (HP) | 25.7/35 | |
|
Engine |
Maker | XINGCHAI | |
| Model | XY477-E5 | ||
| Type | Indirect Injection. Vertical, water-cooled 4 cycle diesel,4 cylinder | ||
| Number of cylinders | 4 | ||
| Bore and stroke | mm (in.) | 78x78.4 ( 3. 1x3. 1) | |
| Total displacement | cm (cu.in.) | 1498 (91.5) | |
| Engine gross power | kW (HP) | 29.5 (40.0)* | |
| Rated revolution | rpm | 3500 | |
| Low idling revolution | rpm | 1000-1100 | |
| Maximum torque | N-m (ft-lb) | 98.7 (72.7) | |
| Battery | 12 V, RC : 80 min, CCA : 430 A | ||
|
Capacities |
Fuel tank | L (U.S.gals.) | 31 (8. 1) |
| Engine crankcase (with filter) | L (U.S.qts.) | 4. 1 (4.3) | |
| Engine coolant | L (U.S.qts.) | 5.2 (5.5) | |
| Transmission case | L (U.S.gals.) | 15 (4.0) | |
|
Dimensions |
Overall length (without 3P) | mm (in.) | 2640 (103.9) |
| Overall width (min. tread) | mm (in.) | 1365 (53.7) | |
| Overall height | mm (in.) | 2150 (84.6) | |
| Wheel base | mm (in.) | 1666 (65.6) | |
|
|
Minimum ground clearance | mm (in.) | 370 (14.6) | |
| Tread | Front | mm (in.) | 935 (36.8) | |
| Rear | mm (in.) | 1050 (41.3) | ||
| Weight (with ROPS or CAB) | kg (lbs.) | 1030 (2271) | ||
| Clutch | N/A | |||
|
Traveling system |
Tires | Front | 7-12 | |
| Rear | 12.4-16 | |||
| Steering | Hydrostatic type power steering | |||
| Transmission |
3 stage Main-hydrostatic transmission, 3 range gear shift (3 forward, 3 reverse) |
|||
| Brake | Wet disk type | |||
| Minimum turning radius (with brake) | m (feet) | 2. 1 (6.9) | ||
|
Hydraulic unit |
Hydraulic control system | Position control | ||
| Pump capacity | L / min (gals / min) |
3P: 19.7 (5.2), Power steering: 14.8 (3.9) |
||
| Three point hitch | SAE Category 1 | |||
| Max. lift force | At lift points | kg (lbs.) | 970 (2139) | |
| 24 in.behind lift point | kg (lbs.) | 760 (1676) | ||
|
PTO |
Rear-PTO | SAE 1-3/8, 6 splines | ||
| PTO / Engine speed | rpm | 1 speed 540 / 2592 | ||
| Mid-PTO | USA No. 5 (10-tooth) involute spline | |||
| PTO / Engine speed | rpm | 1 speed 2500 / 2600 | ||
