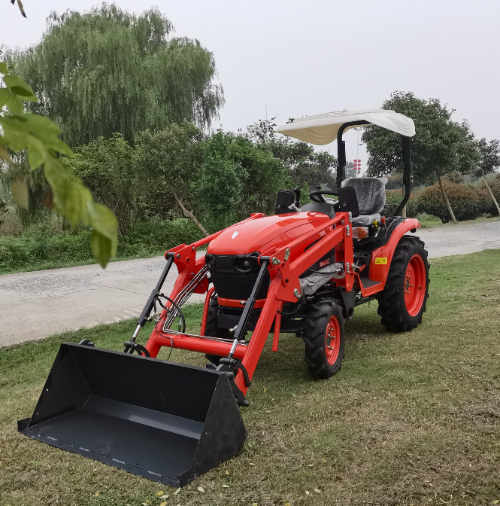

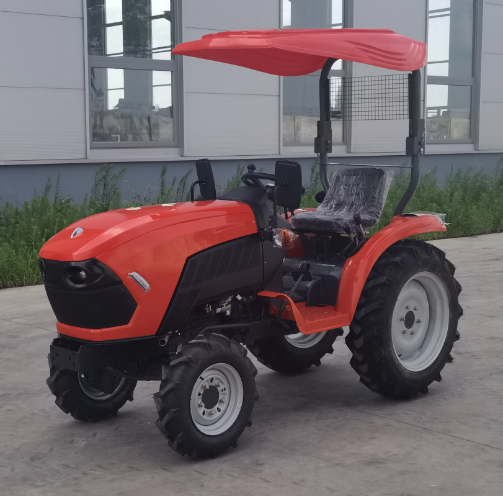

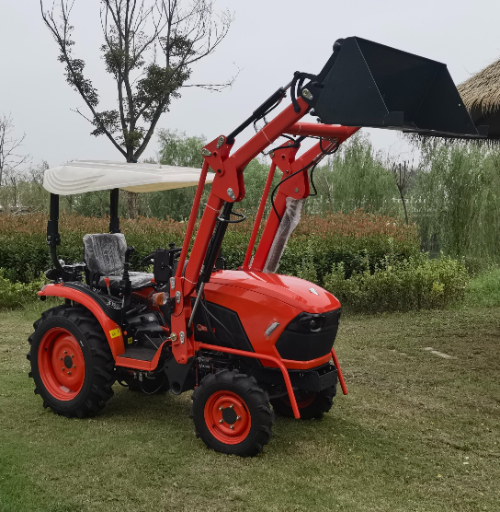

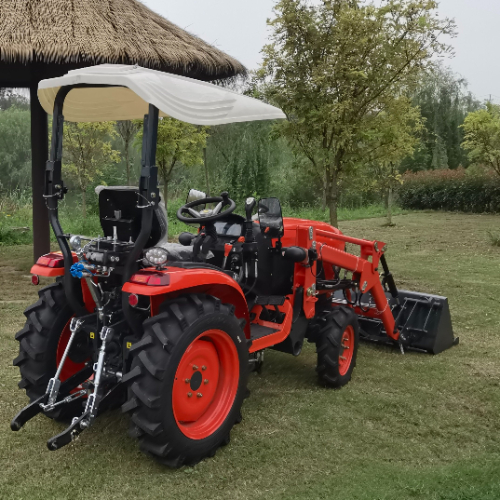

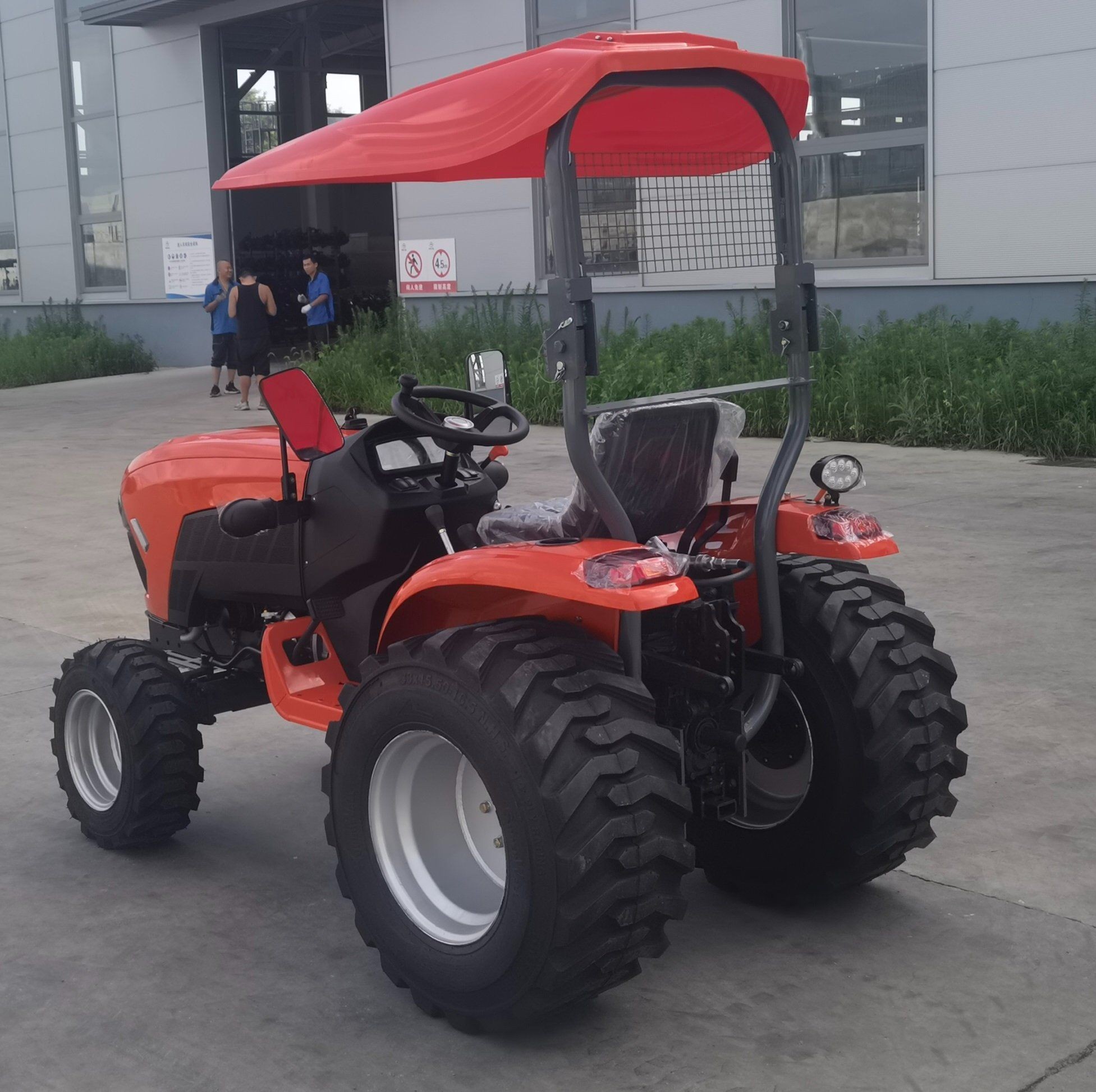

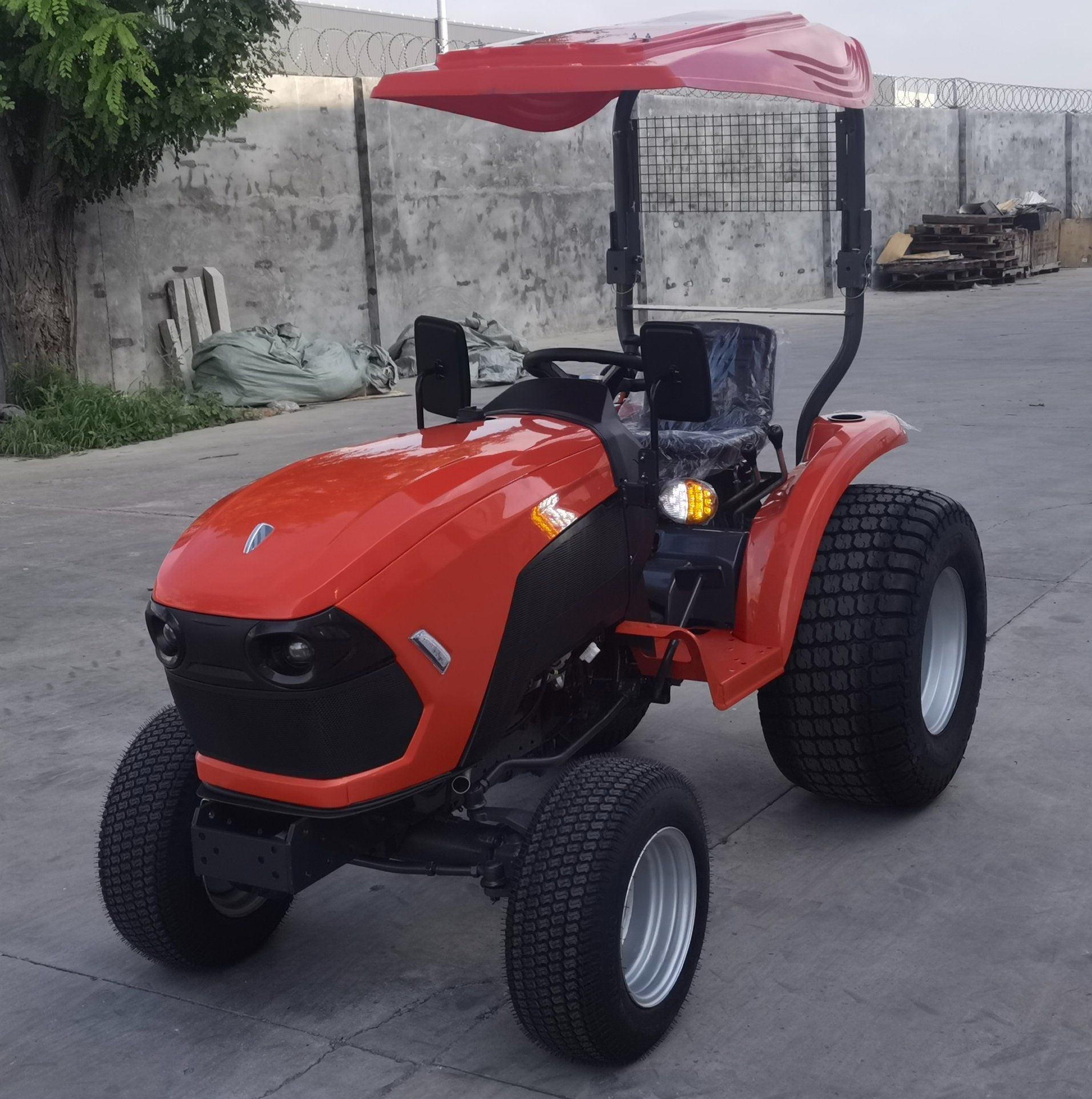

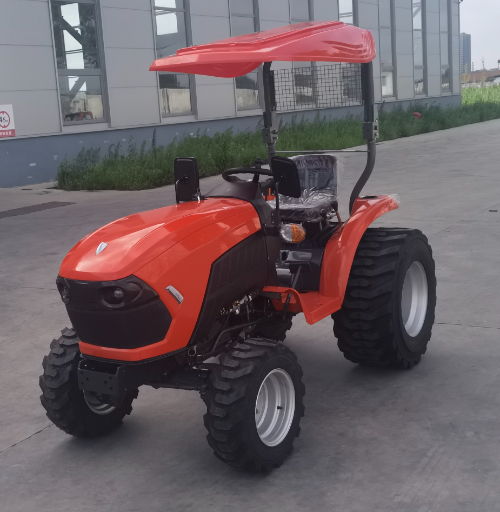

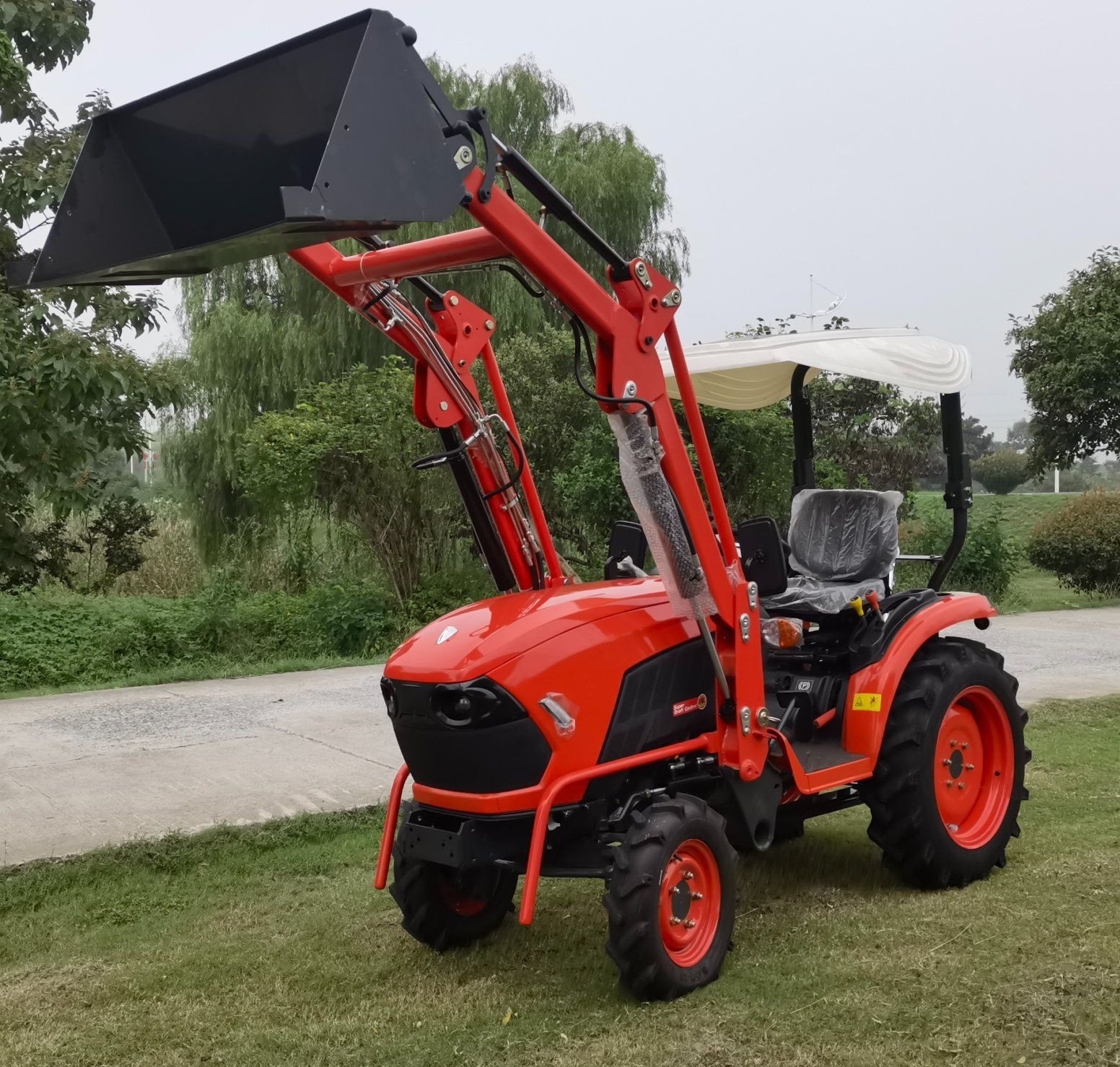

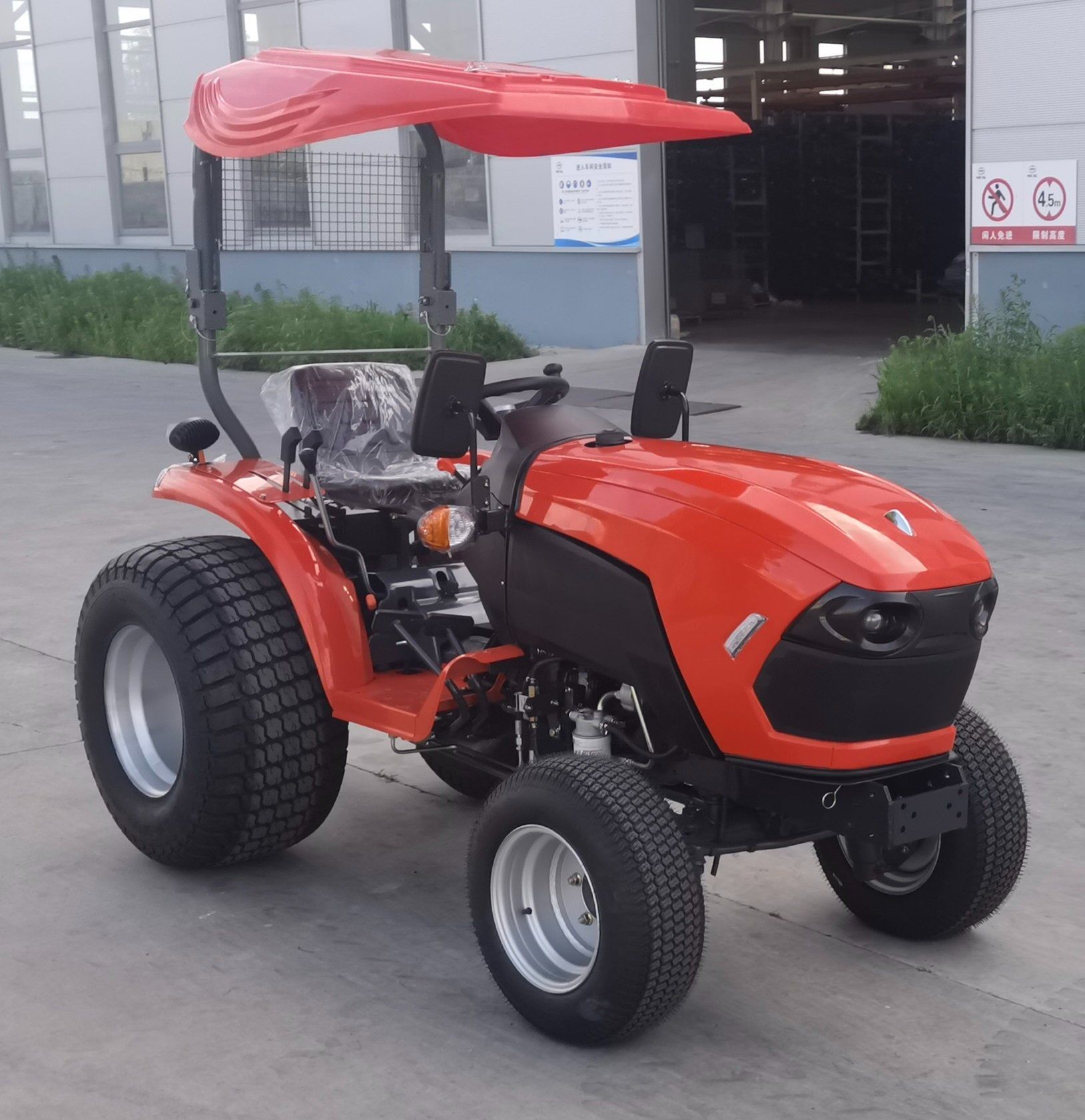

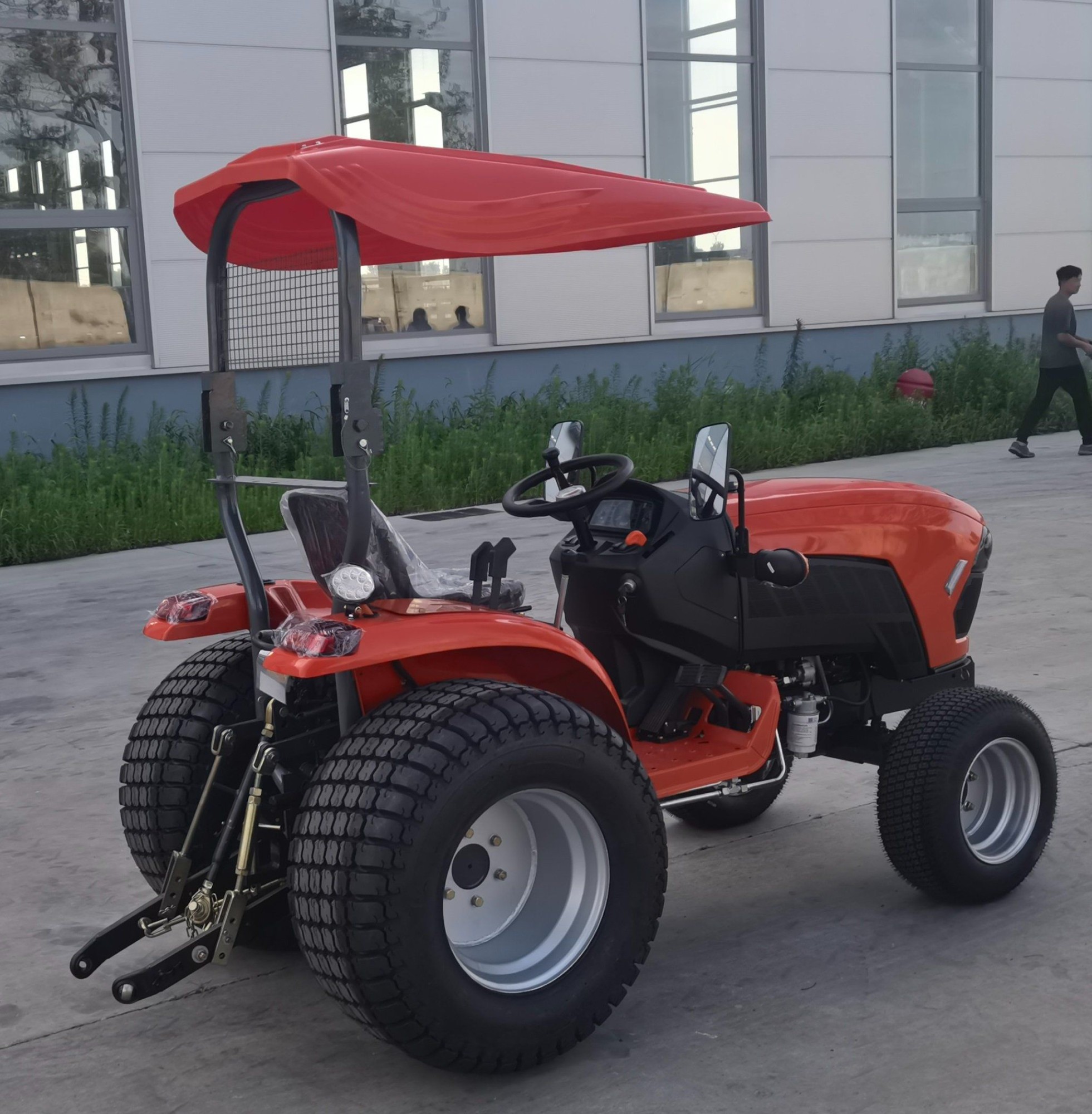

45HP 4WD Mini Tractor with EPA

Product Item:45HP 4WD Mini Tractor with EPA

Description

SPECIFICATION TABLE

Model				NB2610
PTO power*			kW (HP)	15.5 (21)
Engine	Maker			Changchai/ PEKINS
	Model			3M78/403J
	Type			Direct injection, electronic control, high pressure common rail, liquid cooled, 3-cylinder diesel Euro 5 Emission /EPA T4
	Number of cylinders			3
	Bore and stroke		mm	78 x 86
	Total displacement		cm	1223
	Engine gross power*		kW (HP)	19.2 (26.0)
	Rated revolution		rpm	2800
	Maximum torque		N-m	70
	Battery			12V/100AH
Capacities	Fuel tank		L	23
	Engine crankcase (with filter)		L	3.1
	Engine coolant		L	3.9
	Transmission case		L	12.5
Dimensions	Overall length (without 3P)		mm	2410
	Overall width		mm	1105, 1015
	Overall height (Top of steering wheel)		mm	1280/1970(WITH ROPS)
	Wheel base		mm	1563
	Min. ground clearance		mm	325
	Tread	Front	mm	815
		Rear	mm	810, 900

Weight			kg	625
Clutch				Dry single plate
Traveling system	Tires	Front		180 / 85D12
		Rear		8.3-20
	Steering			Integral type power steering
	Transmission			Gear shift, 9 forward and 3 reverse
	Brake			Wet disk type
	Min. turning radius (with brake)		m	2.1

Hydraulic unit	Hydraulic control system			Position valve and draft lifter mix
	Pump capacity		L / min	3P: 16.6 Power steering: 9.8

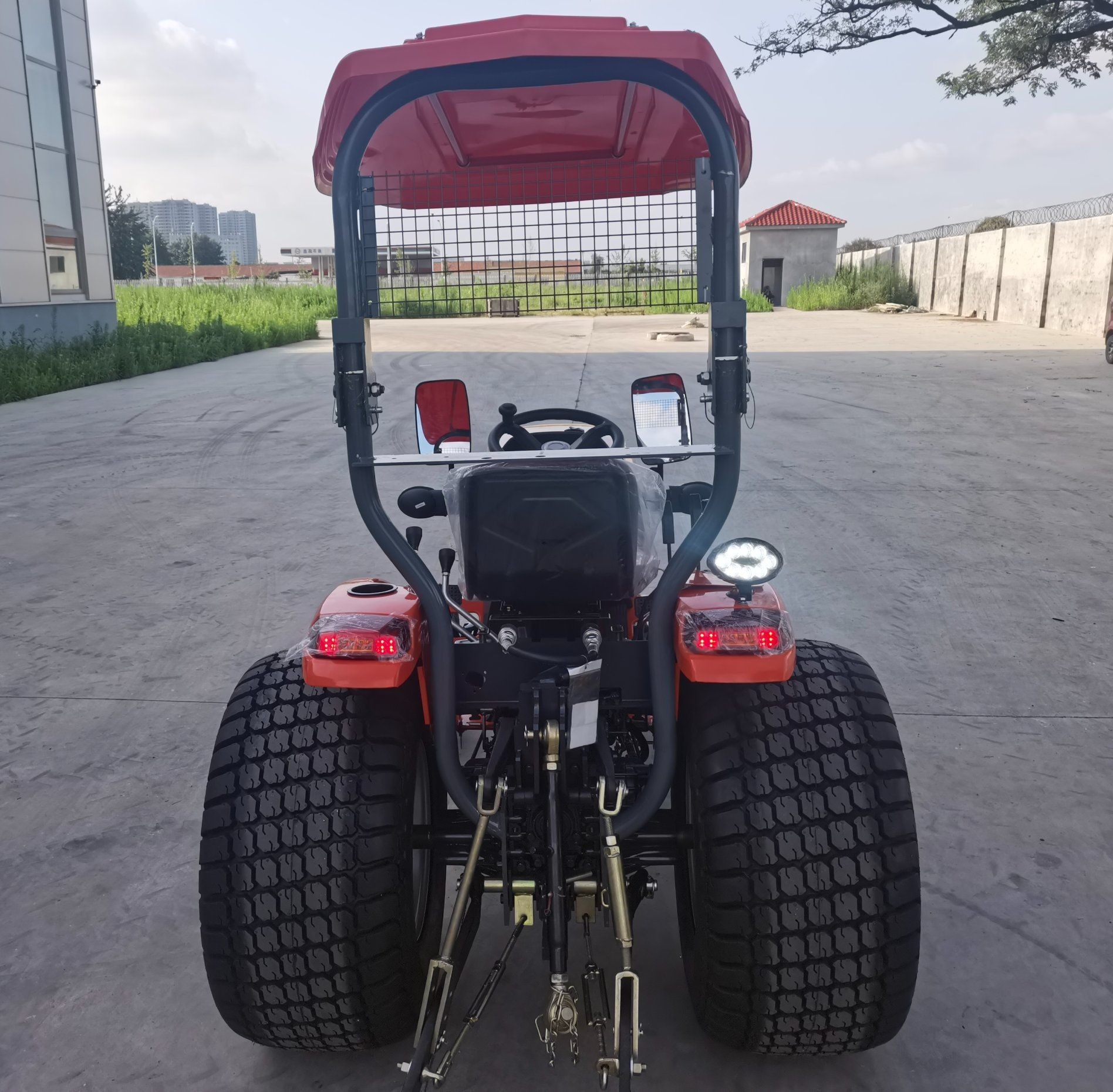

	Three point hitch			IS Category 1, 1N
	Max. lift force	At lift points	kg	750
		24 in. behind lift point	kg	480
PTO	Rear-PTO			SAE 1-3/8, 6 splines
	PTO / Engine speed		rpm	540 / 2504, 980 / 2510

NOTE: * Manufacturer's estimate
TRAVELING SPEEDS
The company reserves the right to change the specifications without notice.

(At rated engine rpm)

Model					NB2610
Tire size (Rear)					8.3-20 - Farm
		Range gear shift lever		Main gear shift lever
Forward	1	Low		1	1
	2			2	1.5
	3			3	2.7
	4	Middle		1	3.3
	5			2	4.8
	6			3	8.6
	7	High		1	7.2
	8			2	10.3
	9			3	18.7
	9	Max. Speed 2750 engine rpm)	(at	3	19.8
Reverse	1	Low		R	1.4
	2	Middle		R	4.4
	3	High		R	9.6
	3	Max. Speed 2750 engine rpm)	(at	R	10.2
