Description
SPECIFICATION TABLE
| Model | NB2610 | |||
| PTO power* | kW (HP) | 15.5 (21) | ||
|
Engine |
Maker | Changchai/PEKINS | ||
| Model | 3M78/403-J | |||
| Type |
Direct injection, electronic control, high pressure common rail, liquid cooled, 3-cylinder diesel Euro 5 Emission/EPA |
|||
| Number of cylinders | 3 | |||
| Bore and stroke | mm | 78 x 86 | ||
| Total displacement | cm | 1223 | ||
| Engine gross power* | kW (HP) | 19.2 (26.0) | ||
| Rated revolution | rpm | 2800 | ||
| Maximum torque | N-m | 70 | ||
| Battery | 12V/100AH | |||
|
Capacities |
Fuel tank | L | 23 | |
|
Engine crankcase (with filter) |
L | 3.1 | ||
| Engine coolant | L | 3.9 | ||
| Transmission case | L | 12.5 | ||
|
Dimensions |
Overall length (without 3P) |
mm | 2410 | |
| Overall width | mm | 1105, 1015 | ||
| Overall height (Top of steering wheel) | mm | 1280/1970(WITH ROPS) | ||
| Wheel base | mm | 1563 | ||
| Min. ground clearance | mm | 325 | ||
| Tread | Front | mm | 815 | |
| Rear | mm | 810, 900 | ||
| Weight | kg | 625 | ||
| Clutch | Dry single plate | |||
|
Traveling system |
Tires | Front | 180 / 85D12 | |
| Rear | 8.3-20 | |||
| Steering | Integral type power steering | |||
| Transmission | Gear shift, 9 forward and 3 reverse | |||
| Brake | Wet disk type | |||
|
Min. turning radius (with brake) |
m | 2.1 | ||
|
Hydraulic unit |
Hydraulic control system | Position valve and draft lifter mix | ||
| Pump capacity | L / min |
3P: 16.6 Power steering: 9.8 |
||

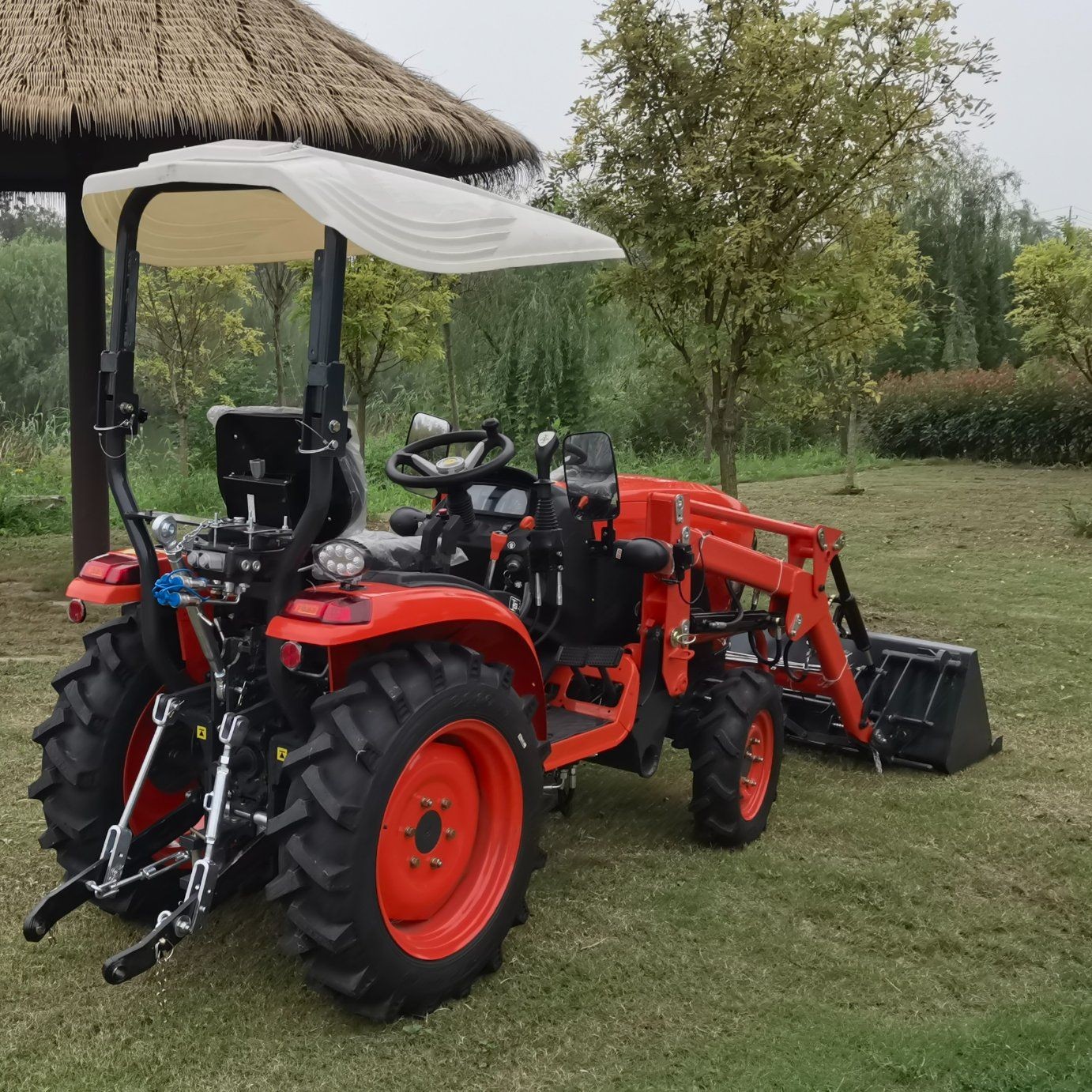

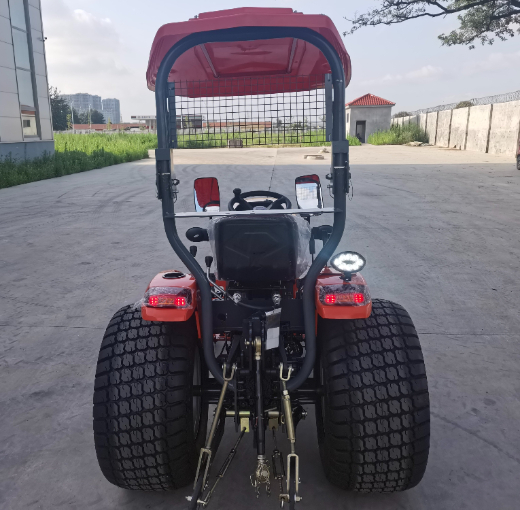

| Three point hitch | IS Category 1, 1N | |||
|
Max. lift force |
At lift points |
kg | 750 | |
|
24 in. behind lift point |
kg | 480 | ||
| PTO | Rear-PTO | SAE 1-3/8, 6 splines | ||
| PTO / Engine speed | rpm | 540 / 2504, 980 / 2510 | ||
TRAVELING SPEEDS
The company reserves the right to change the specifications without notice.
(At rated engine rpm)
| Model | NB2610 | ||||
| Tire size (Rear) |
|
8.3-20 - Farm | |||
|
|
|
Range gear shift lever | Main gear shift lever |
|
|
|
Forward |
1 |
Low |
1 | 1 | |
| 2 | 2 | 1.5 | |||
| 3 | 3 | 2.7 | |||
| 4 |
Middle |
1 | 3.3 | ||
| 5 | 2 | 4.8 | |||
| 6 | 3 | 8.6 | |||
| 7 |
High |
1 | 7.2 | ||
| 8 | 2 | 10.3 | |||
|
9 |
3 |
18.7 | |||
| Max. Speed 2750 engine rpm) | (at | 19.8 | |||
|
Reverse |
1 | Low | R | 1.4 | |
| 2 | Middle | R | 4.4 | ||
|
3 |
High |
R |
9.6 | ||
| Max. Speed 2750 engine rpm) | (at | 10.2 | |||
