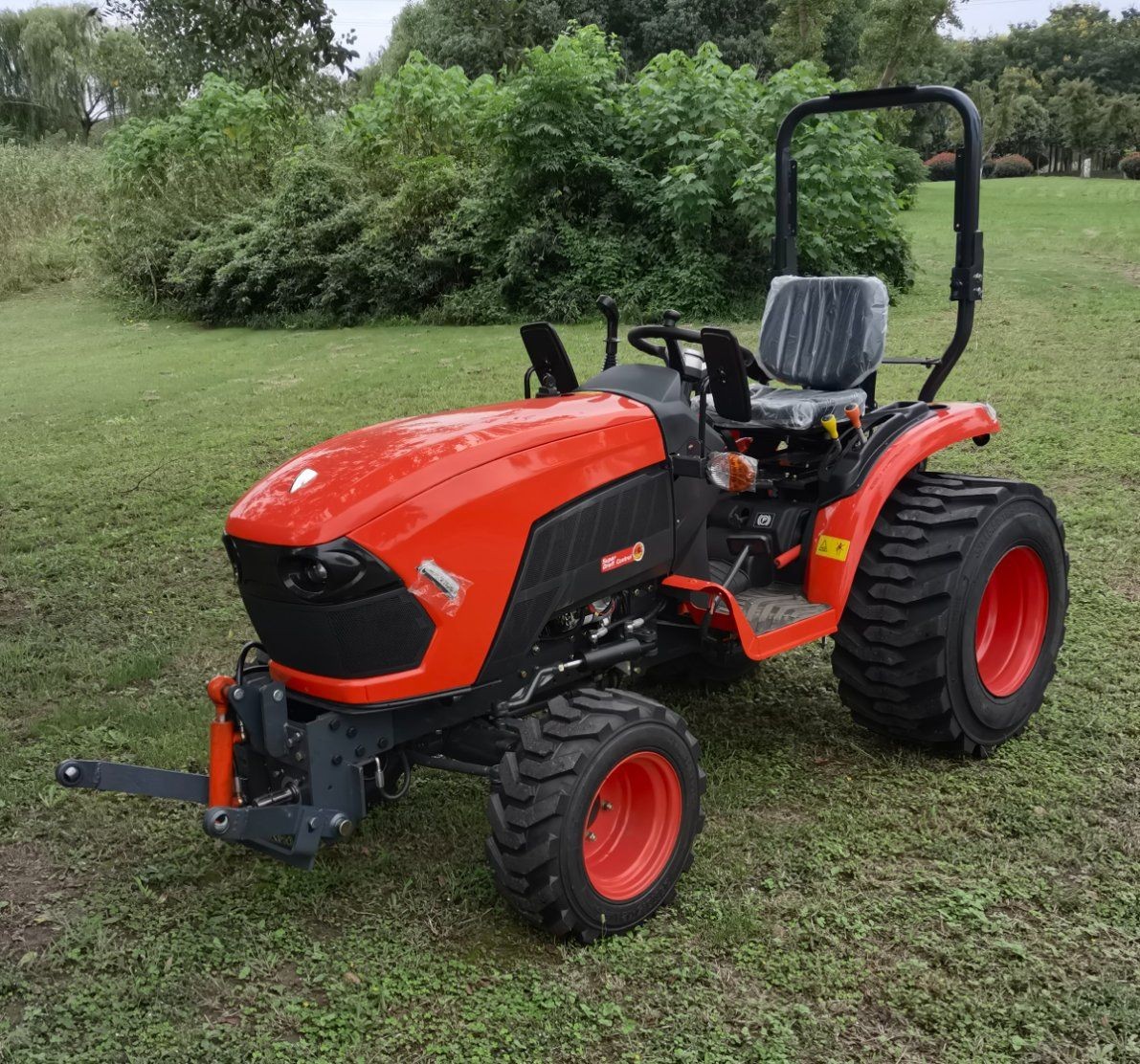

25 to 45HP Narrow Compact Mini Farming Agricultural Agriculture Farm Garden Small 4WD Tractor with Ce Coc EEC
Product Item:25 to 45HP Narrow Compact Mini Farming Agricultura
Description
SPECIFICATION TABLE

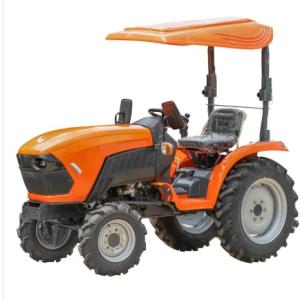

| Model | NB2610 | |||
| PTO power* | kW (HP) | 15.5 (21) | ||
|
Engine |
Maker | Changchai/PEKINS | ||
| Model | 3M78/403-J | |||
| Type |
Direct injection, electronic control, high pressure common rail, liquid cooled, 3-cylinder diesel Euro 5 Emission/EPA |
|||
| Number of cylinders | 3 | |||
| Bore and stroke | mm | 78 x 86 | ||
| Total displacement | cm | 1223 | ||
| Engine gross power* | kW (HP) | 16.9 (23.0) | ||
| Rated revolution | rpm | 2800 | ||
| Maximum torque | N-m | 70 | ||
| Battery | 12V/100AH | |||
|
Capacities |
Fuel tank | L | 23 | |
|
Engine crankcase (with filter) |
L | 3.1 | ||
| Engine coolant | L | 3.9 | ||
| Transmission case | L | 12.5 | ||
|
Dimensions |
Overall length (without 3P) |
mm | 2410 | |
| Overall width | mm | 1105, 1015 | ||
| Overall height (Top of steering wheel) | mm | 1280/1970(WITH ROPS) | ||
| Wheel base | mm | 1563 | ||
| Min. ground clearance | mm | 325 | ||
| Tread | Front | mm | 815 | |
| Rear | mm | 810, 900 | ||
| Weight | kg | 625 | ||
| Clutch | Dry single plate | |||
|
Traveling system |
Tires | Front | 180 / 85D12 | |
| Rear | 8.3-20 | |||
| Steering | Integral type power steering | |||
| Transmission | Gear shift, 9 forward and 3 reverse | |||
| Brake | Wet disk type | |||
|
Min. turning radius (with brake) |
m | 2.1 | ||
|
Hydraulic unit |
Hydraulic control system | Position valve and draft lifter mix | ||
| Pump capacity | L / min |
3P: 16.6 Power steering: 9.8 |
||
| Three point hitch | IS Category 1, 1N | |||
|
Max. lift force |
At lift points |
kg | 750 | |
|
24 in. behind lift point |
kg | 480 | ||
| PTO | Rear-PTO | SAE 1-3/8, 6 splines | ||
| PTO / Engine speed | rpm | 540 / 2504, 980 / 2510 | ||
NOTE: * Manufacturer's estimate
TRAVELING SPEEDS
The company reserves the right to change the specifications without notice.
(At rated engine rpm)
TRAVELING SPEEDS
The company reserves the right to change the specifications without notice.
(At rated engine rpm)
| Model | NB2610 | ||||
| Tire size (Rear) |
|
8.3-20 - Farm | |||
|
|
|
Range gear shift lever | Main gear shift lever |
|
|
|
Forward |
1 |
Low |
1 | 1 | |
| 2 | 2 | 1.5 | |||
| 3 | 3 | 2.7 | |||
| 4 |
Middle |
1 | 3.3 | ||
| 5 | 2 | 4.8 | |||
| 6 | 3 | 8.6 | |||
| 7 |
High |
1 | 7.2 | ||
| 8 | 2 | 10.3 | |||
|
9 |
3 |
18.7 | |||
| Max. Speed 2750 engine rpm) | (at | 19.8 | |||
|
Reverse |
1 | Low | R | 1.4 | |
| 2 | Middle | R | 4.4 | ||
|
3 |
High |
R |
9.6 | ||
| Max. Speed 2750 engine rpm) | (at | 10.2 | |||
